Plough 3-35

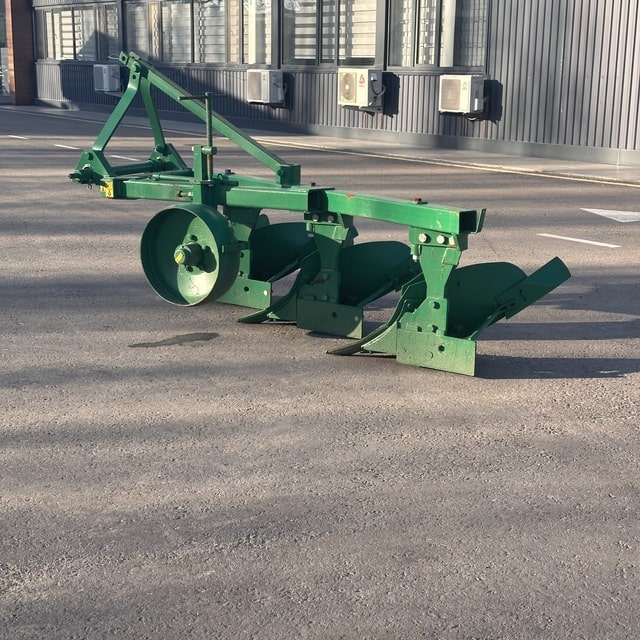

The three-body mounted plough PLN-3-35P (hereinafter referred to as the plough) is designed for ploughing of old arable soils, not littered with stones and other objects, to a depth of up to 27 cm.

The plough can be used on all types of soil with a specific resistance of up to 0.1 MPa, with an optimal absolute moisture content of the cultivated layer of 15 – 30 %, with a height (length) of plant and crop residues of no more than 25 cm and a field surface slope of no more than 8 º.

The plough is aggregated with Belarus class 1.4 wheeled tractors equipped with an automatic rear hitch adjustment system (RHU) and installed front ballast weights in accordance with the tractor's operating instructions, with tractors from other manufacturers of a similar class that meet the requirements for aggregation and operation.

Delivery worldwide
Uzbekistan Delivery throughout Uzbekistan

Profitable terms
purchases Favorable terms of purchase

Price: on request

Are available

Buy Submit your application

Plough brand - PLN-3-35P
Plow type - Driven
Mounting method - Mounted
Number of buildings: — 3

Overall dimensions, mm.
— length — 2780
— width — 1470
— height — 1450
Plow weight, kg — 410±20
Operating speed, km/h — 7-9
Transport speed, km/h, no more than — 20
Productivity per 1 hour of main time, ha — 0.74-1.05
Design width of the plow, cm — 105±10.5
Structural width of the body grip, cm — 35±1.5
Transport clearance, mm, not less than — 300
Distance between bodies along the plow path, mm — 845±25
Distance from the support plane to the lower surface of the frame, mm — 720±20
Reliability coefficient of the technological process, not less than — 0.98
Specific fuel consumption per shift, kg/ha — 14-17

Key indicators of the quality of the technological process:
— maximum soil plowing depth, cm — 27
— soil crumbling, %, lump sizes, mm, up to 50 inclusive — 70
— depth of plant and crop residues placement, cm, not less than — 10
— incorporation of plant and crop residues, %, not less than — 98
— soil surface ridge, cm, no more than — 5
Number of personnel by profession required to service operations directly related to the operation of the machine, people - 1
Track of rear tractor wheels, mm — 1400
Average service life of a plow, years - 8
